MIL-STD-2071A(AS)

640AD Radar A

APPENDIX

SOFTWARE VERSION-V2.01

RUN NUMBER = 29                                                          DATE ACQUIRED:  JUL 9, 1996                          DATE PROCESSED:  JUL 25, 1996

MISSION 9615 COHO HORIZ. SYSTEM 2

TPR 1511 MAT B

RADAR FREQ = 9100 MHz

RADAR PRP = 1000 usec                                                                  RADAR PRF = 1000.0 Hz

GATE SPACING = 100 nsec                                                     FULL SCALE RCS = 0.010 square meter

PLOT INTERVAL = 20

STARTING PULSE =  800

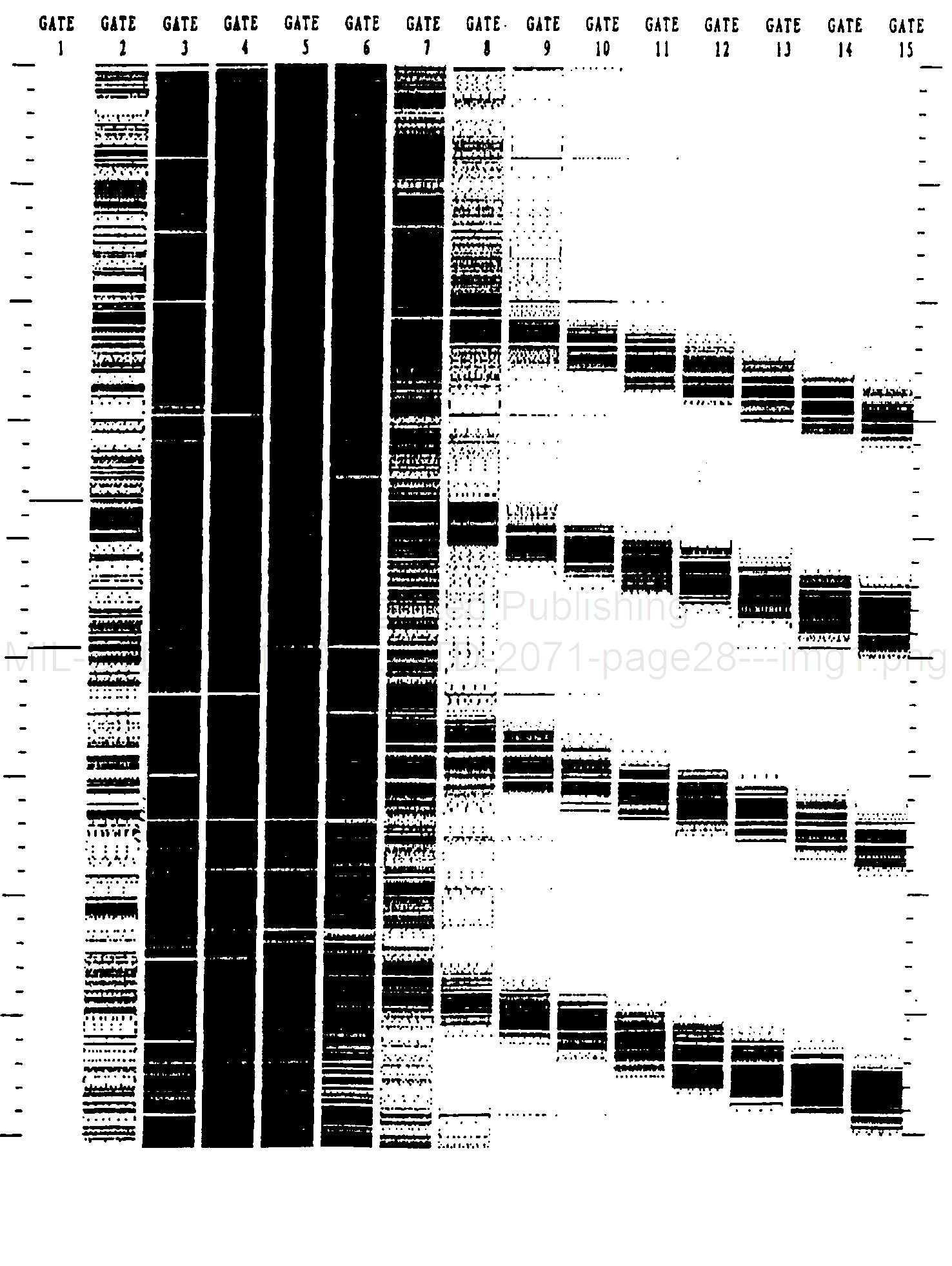

FIGURE 3.  Example of shadow graph format in black and white.

22
